SELL OFFER

Offer By

End User

Year

2018

Location

Gujarat Bharat

Capacity

Al 9.5 mm and Cu 8.0 mm to 4mm with Upto 1.60 mm Drawing Dies

Make/Brand

Various Manufacturer

Description

Aluminium and Copper Rod Breakdown Single Wire Drawing Line
Commissioned in 2018
Aluminium 9.5 mm and Copper 8.0 mm Rod to 4mm with Upto 1.60 mm Wire Drawing Dies
Consisting Followings
Rod Breakdown Machine - RBD Machine and Spooler Machine
Year of Manufactured 2000 (Purchased Second Hand in 2017)
Make Hacoba Engg Co, Nagpur
Production Capacity 150 Kg/hr
Thickness From 9.5 mm to 4 mm (Aluminium)

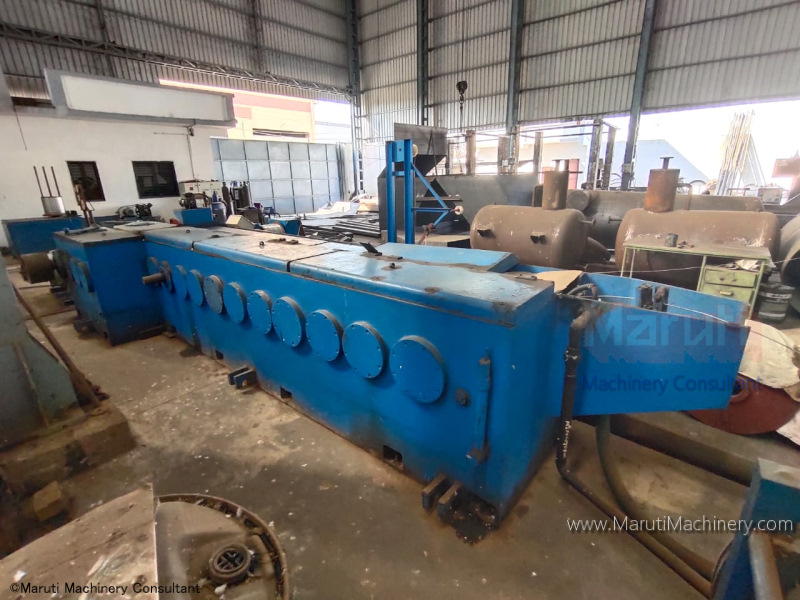

Rod Breakdown Machine Specifications
Model : 6+1=7 Draw HEC/WD
Machine Design : Tandem, Wet with Spur Gear Train
Capstan Dia. : 450 mm.
Rod Size : Alum. : 9.5 mm, Cu : 8.0 mm
No. of Dies : 7
Finish Size : 4 mm
Final Speed : 3 Speed-4-6-8 meters per second
Elongation (percentage) : 26
Area Reduction (%) : 20.5
Main Motor : 120 HP Crompton Foot Mounted Motor

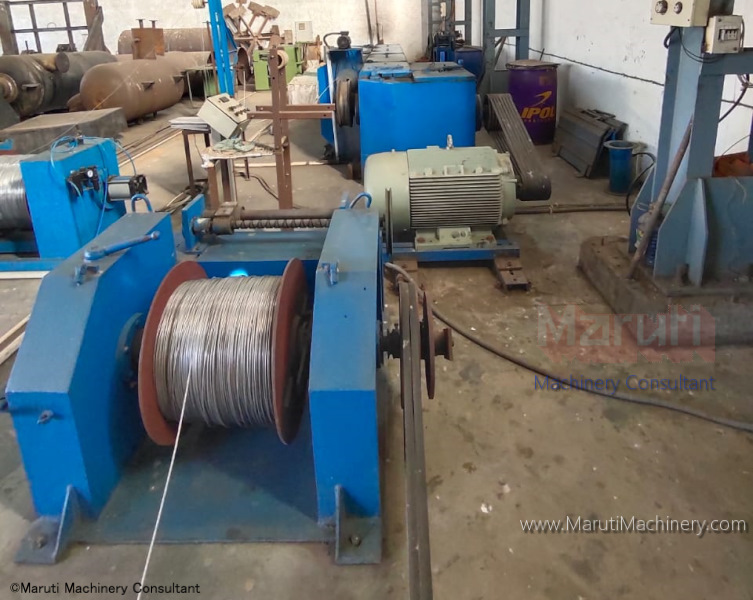

High Speed Spooler Machine
Bobbin Dia 630 Din
10 HP Torque Drive (V Belt Pulley)
Equipped With Disc Pneumatic Brake For Immediate Stop When Wire Is Break
Latest Designed Traversing Unit Rolling Ring Type For Layering The Drawing Wire In The Bobbin
Aluminum Wire Single Drawing Machine
Make Dhanlaxmi Industries, Ahmedabad
Year of Manufactured 2017
Gear Box
Drum Dia 380x 340 Height
Drum Hard Chrome
Motor pulley 5 inch
Gear Box Pulley 5 inch
Speed 10 meter/ sec.
Electrical Panel with 7.5 HP Crompton Make Motor including with electrical panel having 7.5 HP Schneider Make Drive
Standard Pointing Machine
Make Dhanlaxmi Industries, Ahmedabad
Year of Manufactured 2017
3 HP Crompton Make Motor with Pulley and V Belt
Butt Welding Machine
Make M/S. Techweld Industries, Mumbai
Year of Manufactured 2017
3KVA Micro Butt Welder Suitable To Weld Aluminium Wire From 0.8mm To 4mm Dia Working On 230V Single Phase
Pay Off Machine
5 HP Motor with VFD Vacon Make With Panel
Caliper Brake, Pneumatic Cylinder Accessories
Dancing Pulley
Complete Assembly of Adjusting Synchronizing from PO To LWS Machine

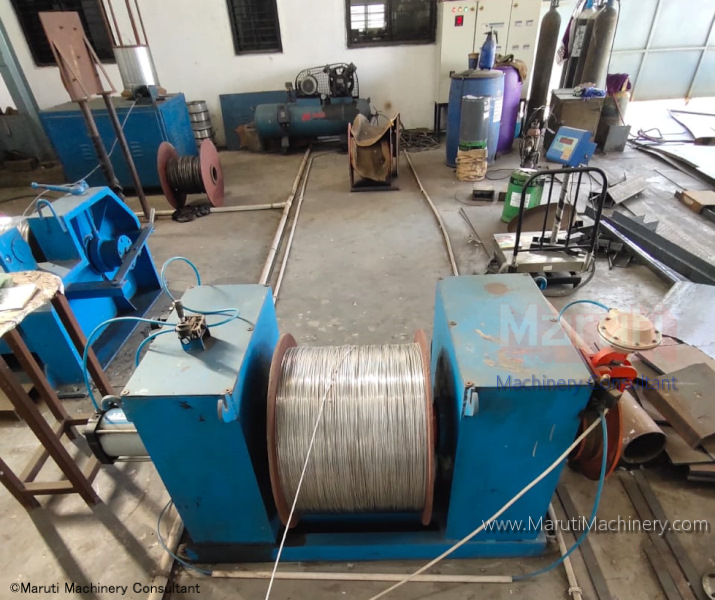

Layer Winding Spooling Machine
Max. Center Ht. From Ground: 900 To 965 mm
Max. Coil Diameter : 350 mm Max.
Max. Winding Length : 150 mm
Wire Range : 1 mm To 4.8 mm Zn Wire
Motor : 3 Hp 3 Phase 415v A.C.
Winding Speed : 0 To 350 RPM Infinitely Variable
Drive : Vacon Make VFD
Counter : 4 Digit Pre-set Electronic
Drawing Dies:
Mikrotek Machines Ltd, Bengaluru
Year 2016
(2.00, 2.30, 3.175 and 4.76)
Shree Mahalaxmi Dies Industries, Surat
Year 2019
(8.28, 7.22, 6.29, 5.49, 4.15, 3.62, 3.24, 3.15, 2.88, 2.56, 1.78 and 1.60)
